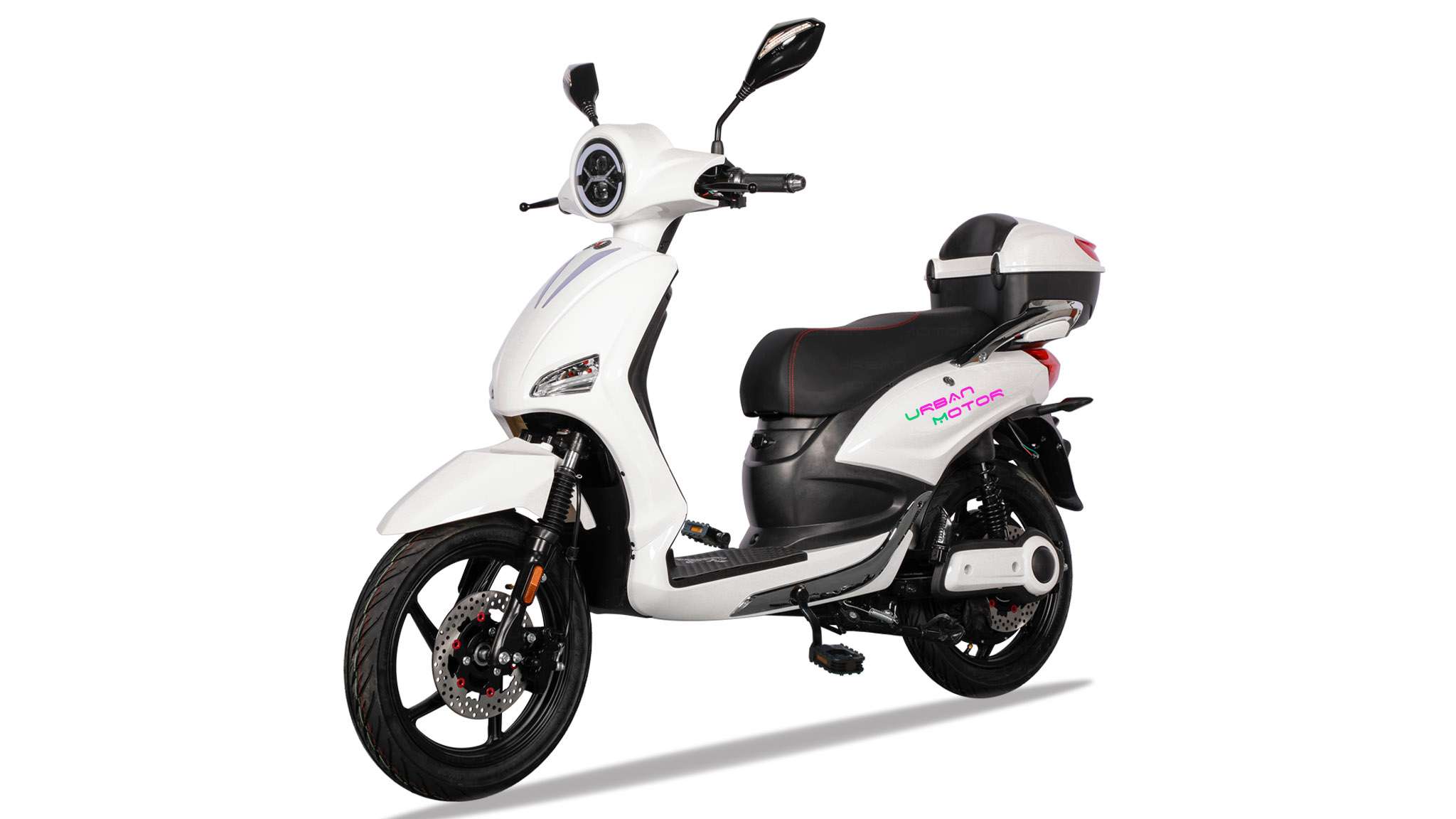

  • Photo-Album-_Electric Bicycle_UM-DB04_Fr._side_White

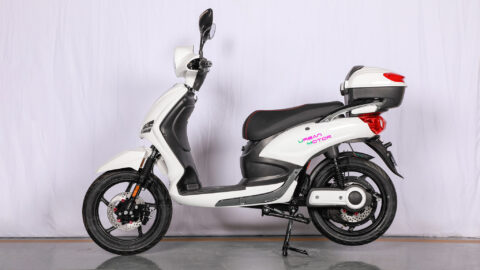

  • Photo-Album-_Electric Bicycle_UM-DB04_Lf._side_White

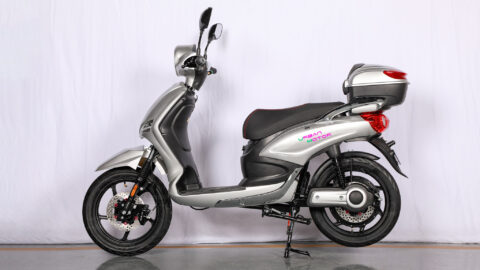

  • Photo-Album-_Electric Bicycle_UM-DB04_Lf._side_Silver

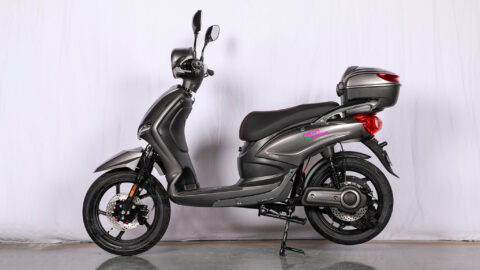

  • Photo-Album-_Electric Bicycle_UM-DB04_Lf._side_Gray

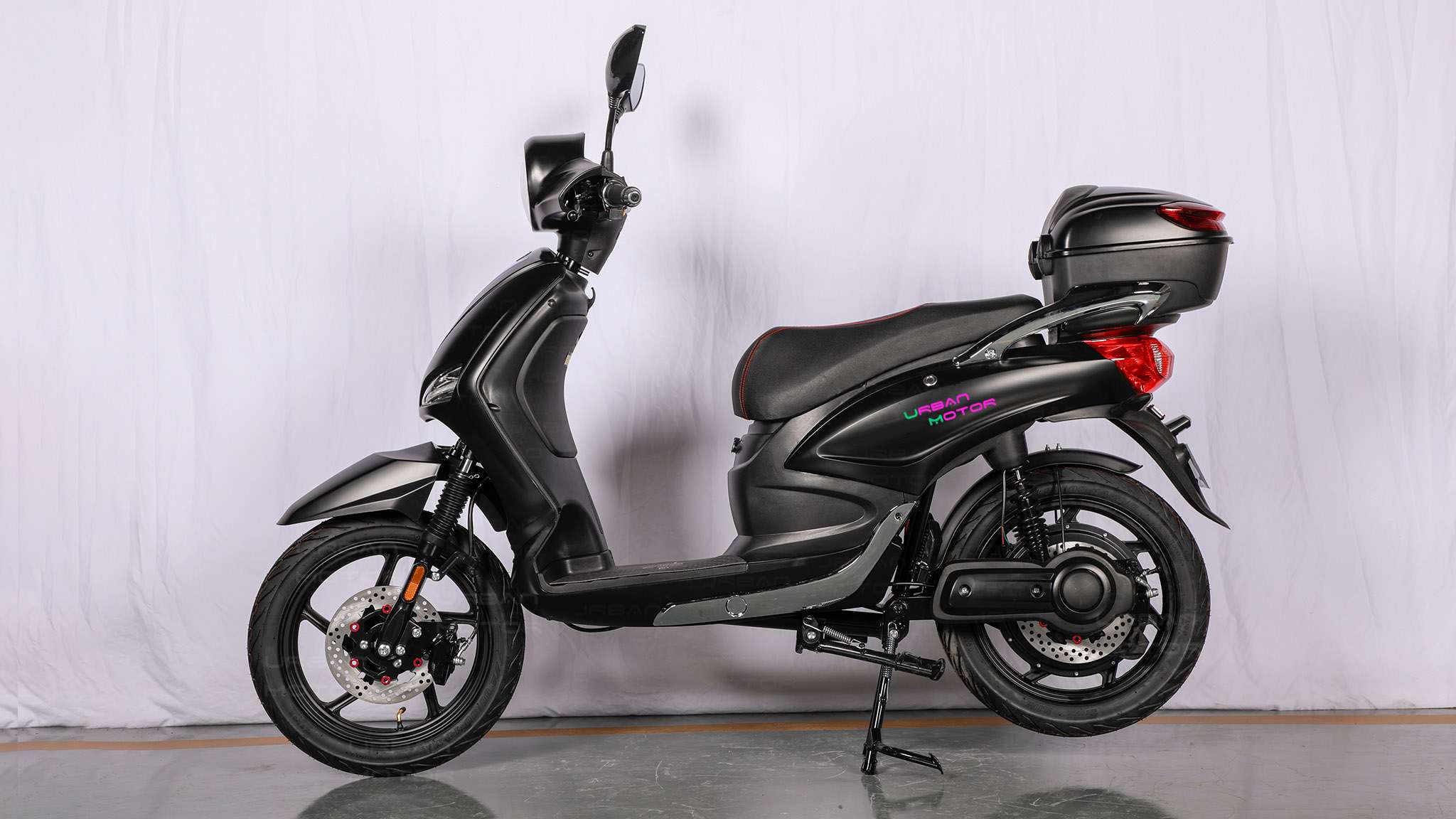

  • Photo-Album-_Electric Bicycle_UM-DB04_Lf._side_Matt Black

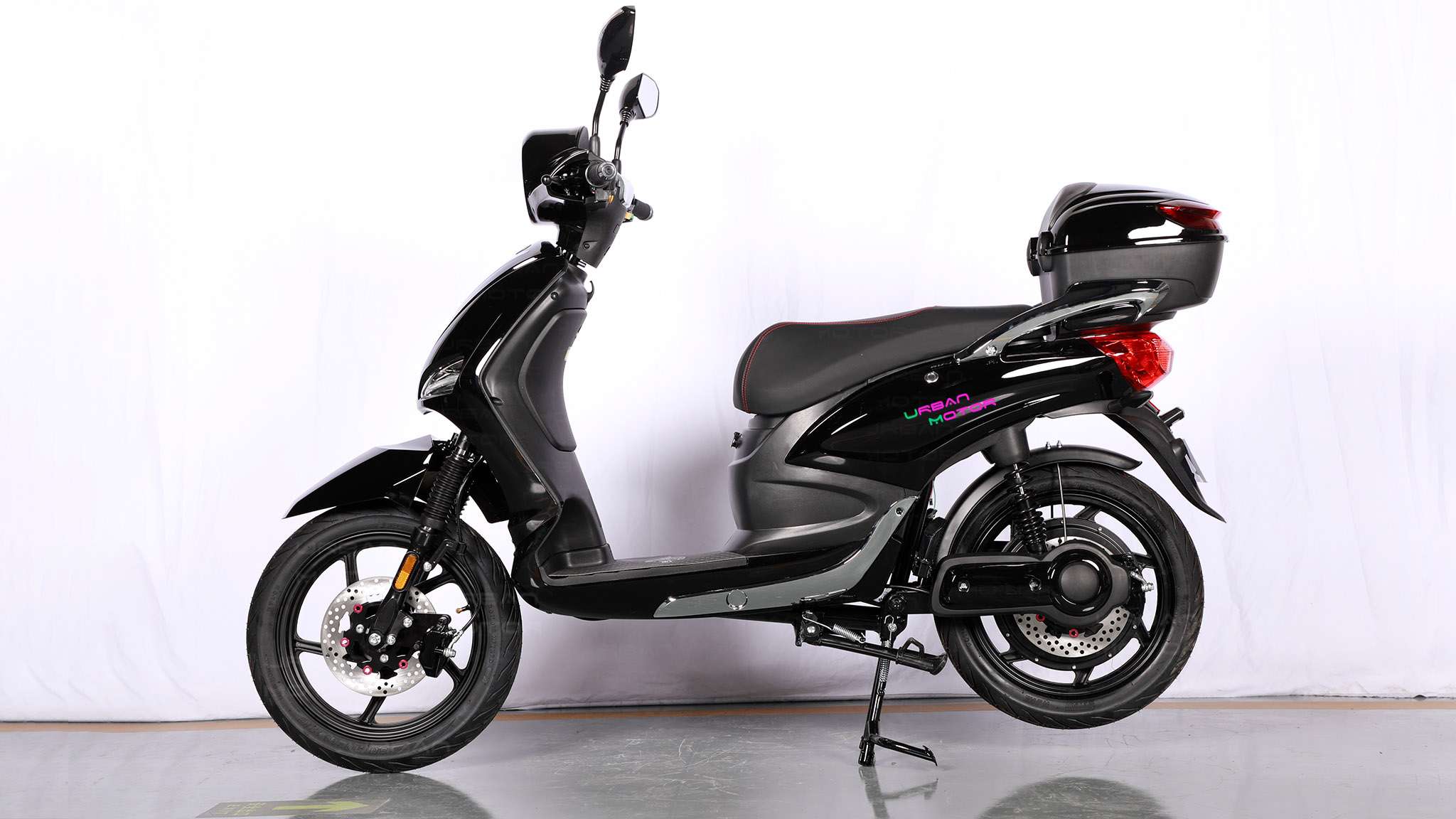

  • Photo-Album-_Electric Bicycle_UM-DB04_Lf._side_Black

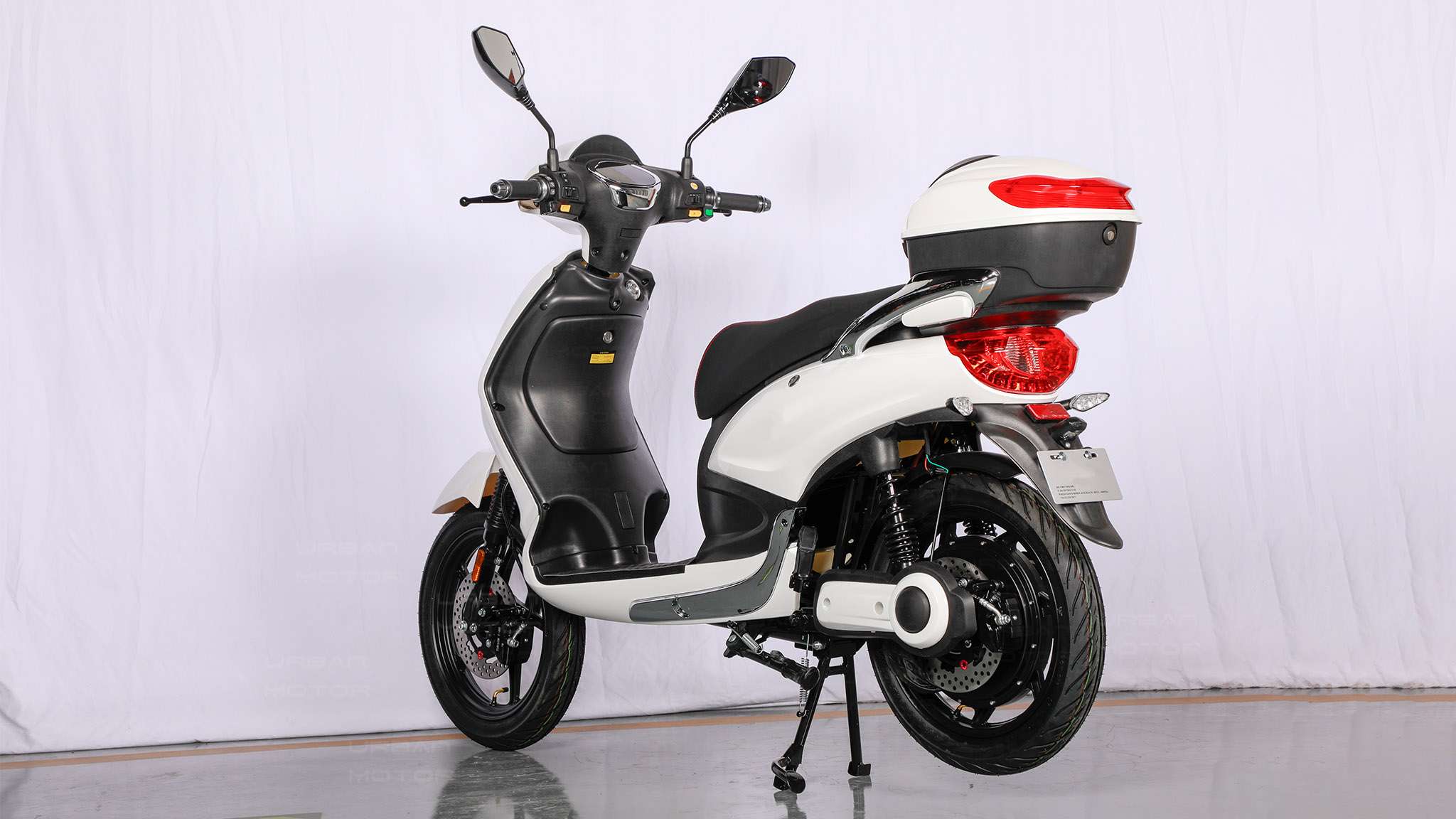

  • Photo-Album-_Electric Bicycle_UM-DB04_Lf._side2_White

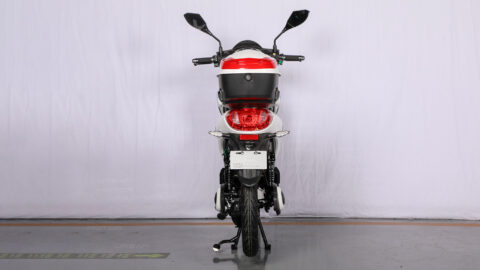

  • Photo-Album-_Electric Bicycle_UM-DB04_Rr._White

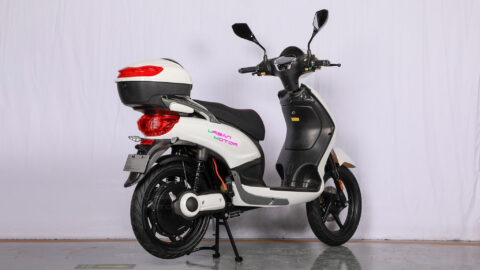

  • Photo-Album-_Electric Bicycle_UM-DB04_Rt._side2_White

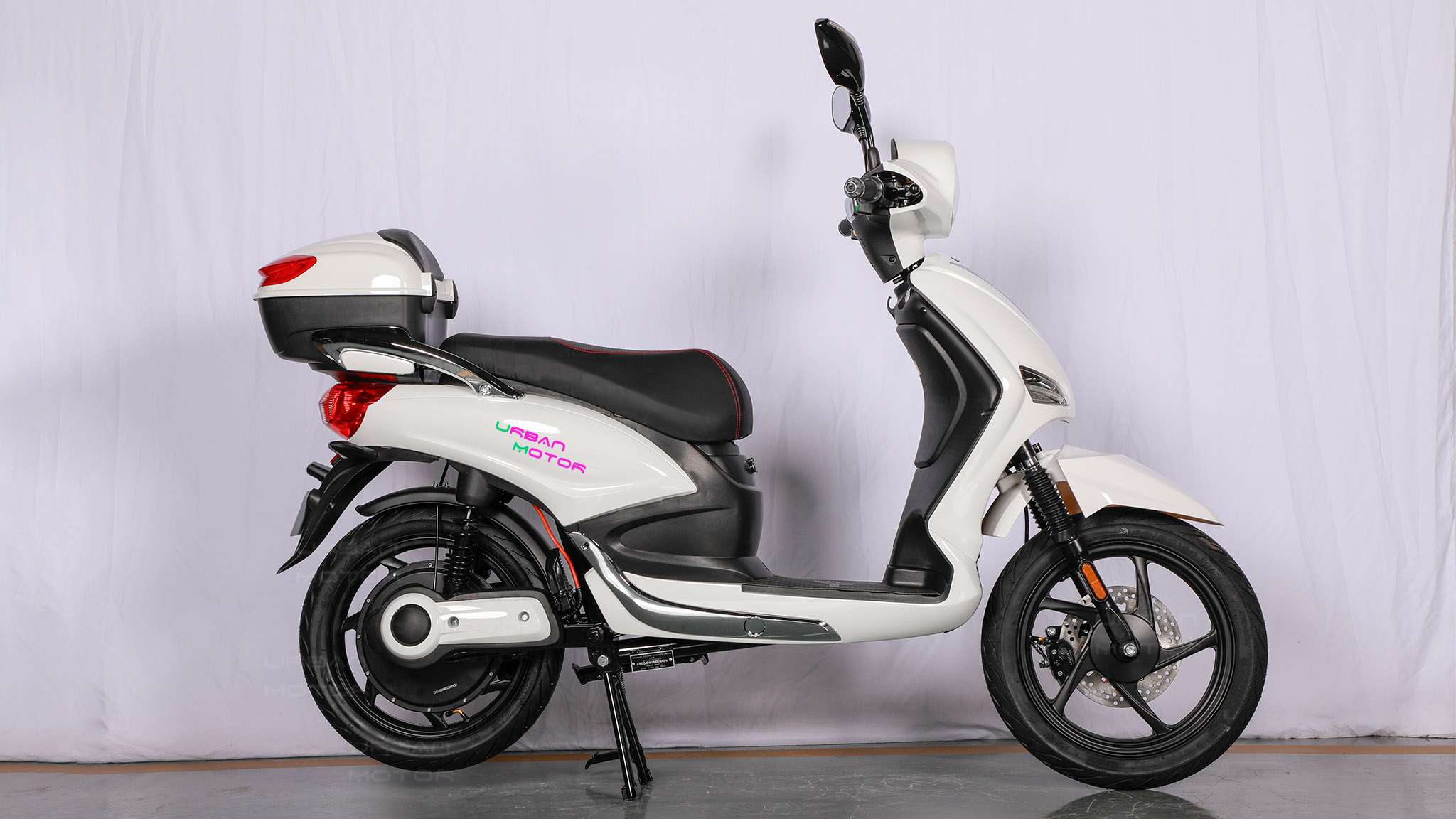

  • Photo-Album-_Electric Bicycle_UM-DB04_Rt._side_White

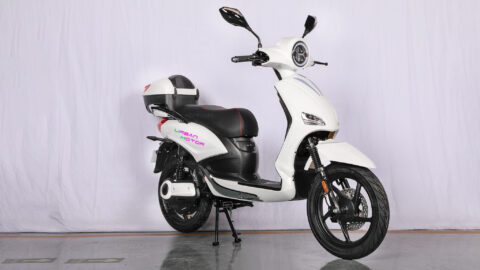

  • Photo-Album-_Electric Bicycle_UM-DB04_Rt._side1_White

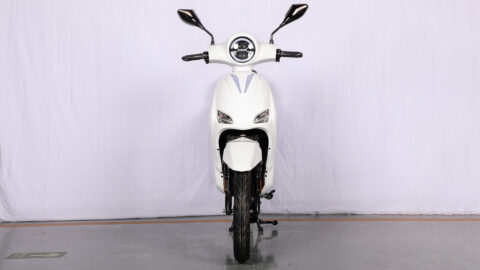

  • Photo-Album-_Electric Bicycle_UM-DB04_Fr._White

$585 $565

Applicable people: students and young women; Age range: 14 to 45 years old; Usage scenarios: short to medium distance commuting / outings.

SKU: UM-DB04 Category:

UM-DB04
You may not like it,
but you can never ignore it.
 UM-DB04
Unique in style, it injects fresh and timeless charm into women of the new era..
 UM-DB04

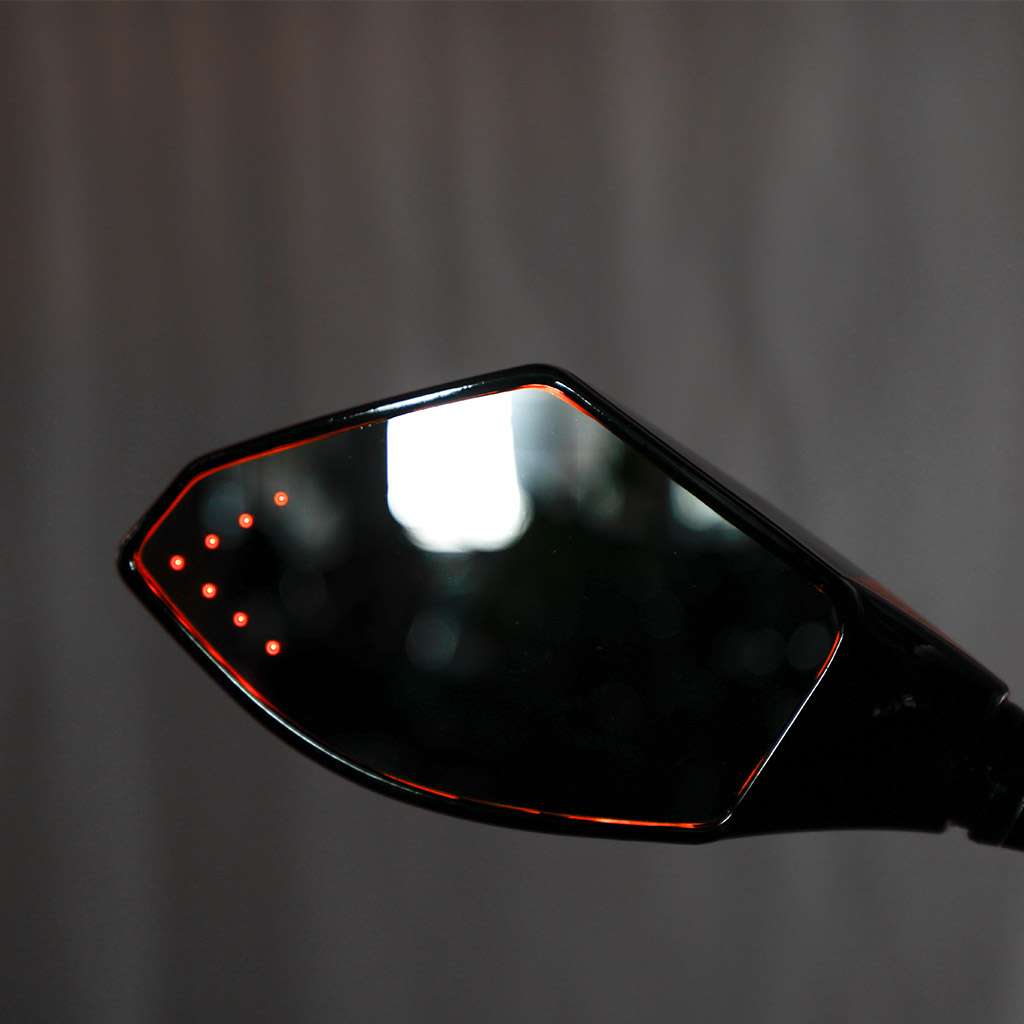

rear view mirrors with signal indication function.
 Head Lamp
full Led head lamp with Double lens & day light.
 Rear Box
rear box as defualt configuration.

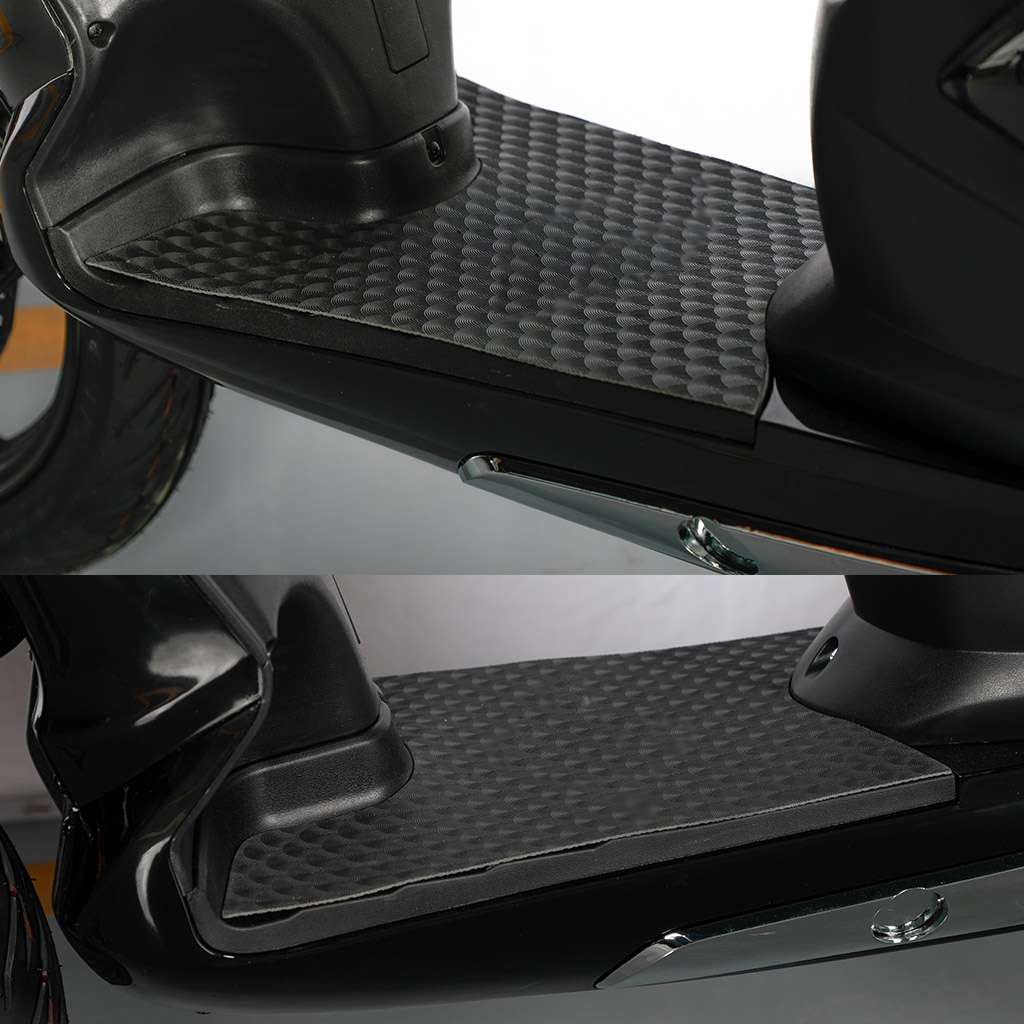

 Foot Rest
Lengthen and widen footrest for driver.
 Comfortable Seat
Comfortable seat, lengthened and thickened, non-slip, and not prone to fatigue.

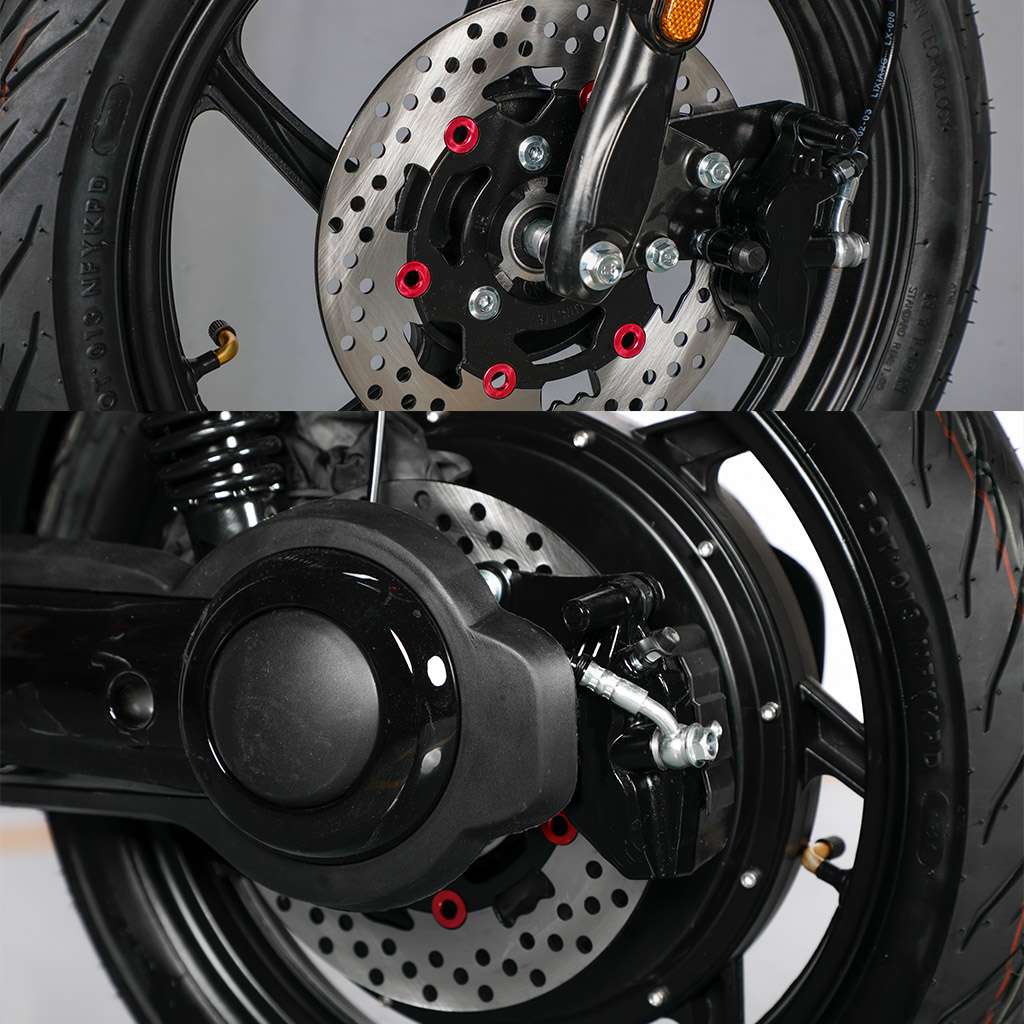

 Fr. & Rr. Disc Brake
Fr. & Rr. disc brake.
 Switch Assy
switch assy_with optional accessories_Stereo speakers.
 Dual rear shock absorbers
Love is not love, without a UM-DB04.

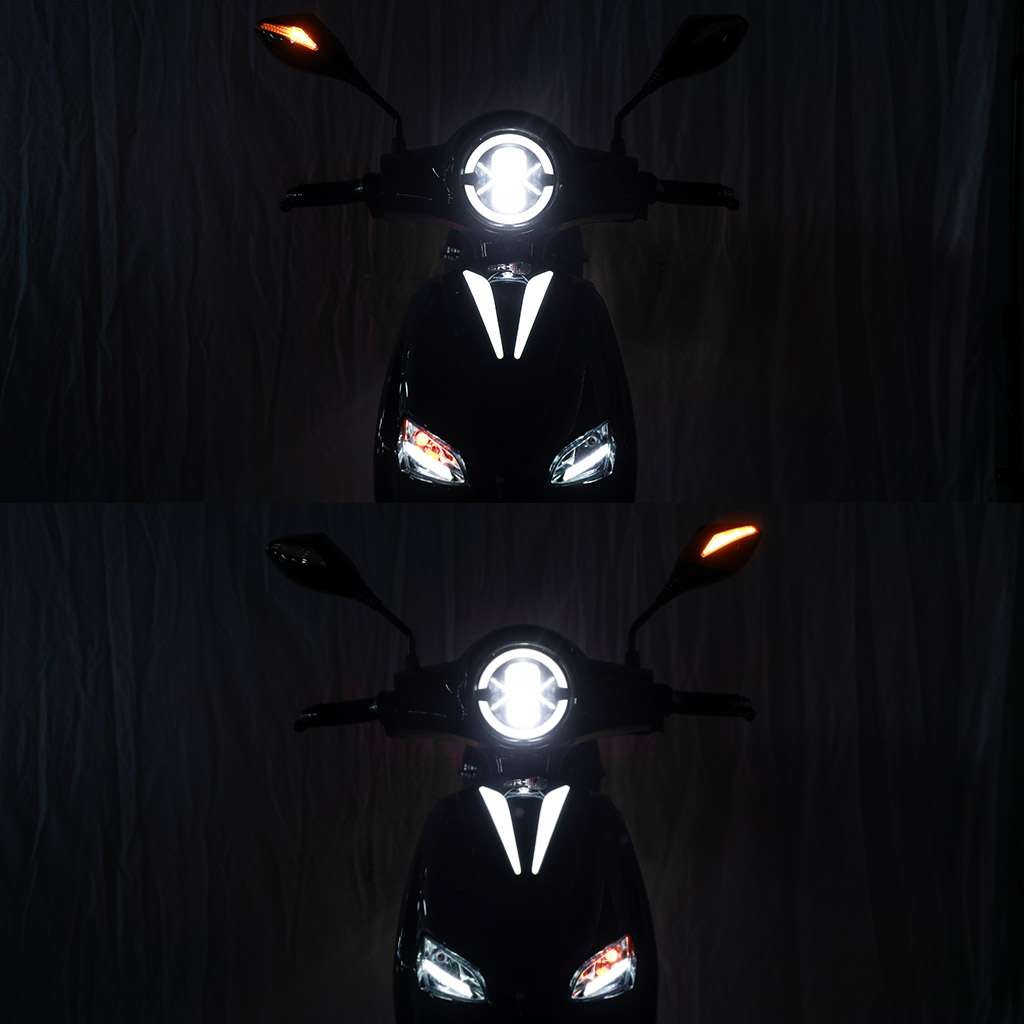

 Photo-Gallery-Carousel_Electric Bicycle_UM-DB04_black-lamps in night Photo-Gallery-Carousel_Electric Bicycle_UM-DB04_black-dashboard shows day & night Photo-Gallery-Carousel_Electric Bicycle_UM-DB04_black-rear view mirrors with signal indication function Photo-Gallery-Carousel_Electric Bicycle_UM-DB04_black-full Led head lamp with Double lens & day light Photo-Gallery-Carousel_Electric Bicycle_UM-DB04_black-Comfortable seat, lengthened and thickened, non-slip, and not prone to fatigue Photo-Gallery-Carousel_Electric Bicycle_UM-DB04_black-rear box as defualt configuration Photo-Gallery-Carousel_Electric Bicycle_UM-DB04_black-Lengthen and widen footrest for driver Photo-Gallery-Carousel_Electric Bicycle_UM-DB04_black-Fr. & Rr. disc brake Photo-Gallery-Carousel_Electric Bicycle_UM-DB04_black-switch assy_with optional accessories_Stereo speakers Photo-Gallery-Carousel_Electric Bicycle_UM-DB04_black-Dual rear shock absorbers
Specification
48V/500W 20Ah L-I

EEC

48V/800W 20Ah L-A
48V/800W 20Ah L-I
UM-DB05_Specification table
UM-DB05_Specification table
UM-DB05_Specification table
Name
Iris
Model
UM-DB04
Dimension
1870*655*1230mm  (L*W*H)
Ignition mode
Mechanical Key, Remote Control
Motor
48V/500W, BLDC, hub, disc
48V/800W, BLDC, hub, disc
Battery
48V/20Ah, li-ion(NCM), portable
48V/20Ah, lead-acid, portable
48V/20Ah, li-ion(NCM), portable
Dashboard
LED
Drive mode
Throttle, Pedal assist
Brake
fr. / rr. Disc/Disc
Tire
fr. & rr. 80/90-14 Tubeless
Stand
Side stand & Main stand
Performance



Charging time
5h
6-8h
5h
Battery Life
600-800 Cycles
300-400 Cycles
600-800 Cycles
Max. Speed
25km/h
40km/h
40km/h
Range
65-70km
50-55km
50-55km
Climbing
10° / 18%
12° / 21%
12° / 21%
Max. Loading
125kg
150kg
Packing



N.W.
60kg
79kg
61kg
G.W. (full ctn.)
68kg
87kg
69kg
Packing Size
1600*370*860mm  (L*W*H)
Loading Qty.
132 units / 40HQ, SKD
Configuration



Option 1
⌾Tail plate
Option 2
⌾Bluetooth Stereo speakers
Option 3
⌾Rearview mirror with signal light
Price
Notice

*The company reserves the right to make technical and aesthetic changes at any time.

*Ride carefully, always wearing a helmet and and proper attire. Always comply with the rules of the road and respect the environment. Read the operating and maintenance manual carefully.

*Always ask for original and approved spare parts in accordance with prevailing standards. See your Official Urban Motor Dealership and Authorised Retailers for a secure purchase and guaranteed service support. Original Urban Motor spare parts are a guarantee of quality and ensure that vehicle performance remains unaltered.
