  • Photo-Album-_Electric Bicycle_UM-DB06_Lf._side1_Black
  • Photo-Album-_Electric Bicycle_UM-DB06_Lf._Black
  • Photo-Album-_Electric Bicycle_UM-DB06_Lf._Red
  • Photo-Album-_Electric Bicycle_UM-DB06_Lf._White

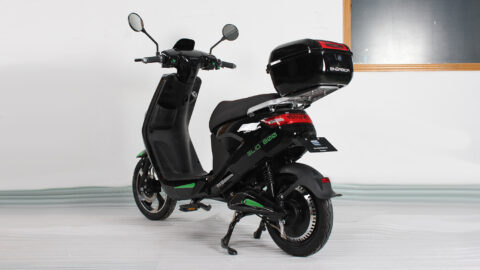

  • Photo-Album-_Electric Bicycle_UM-DB06_Lf._side2_Black

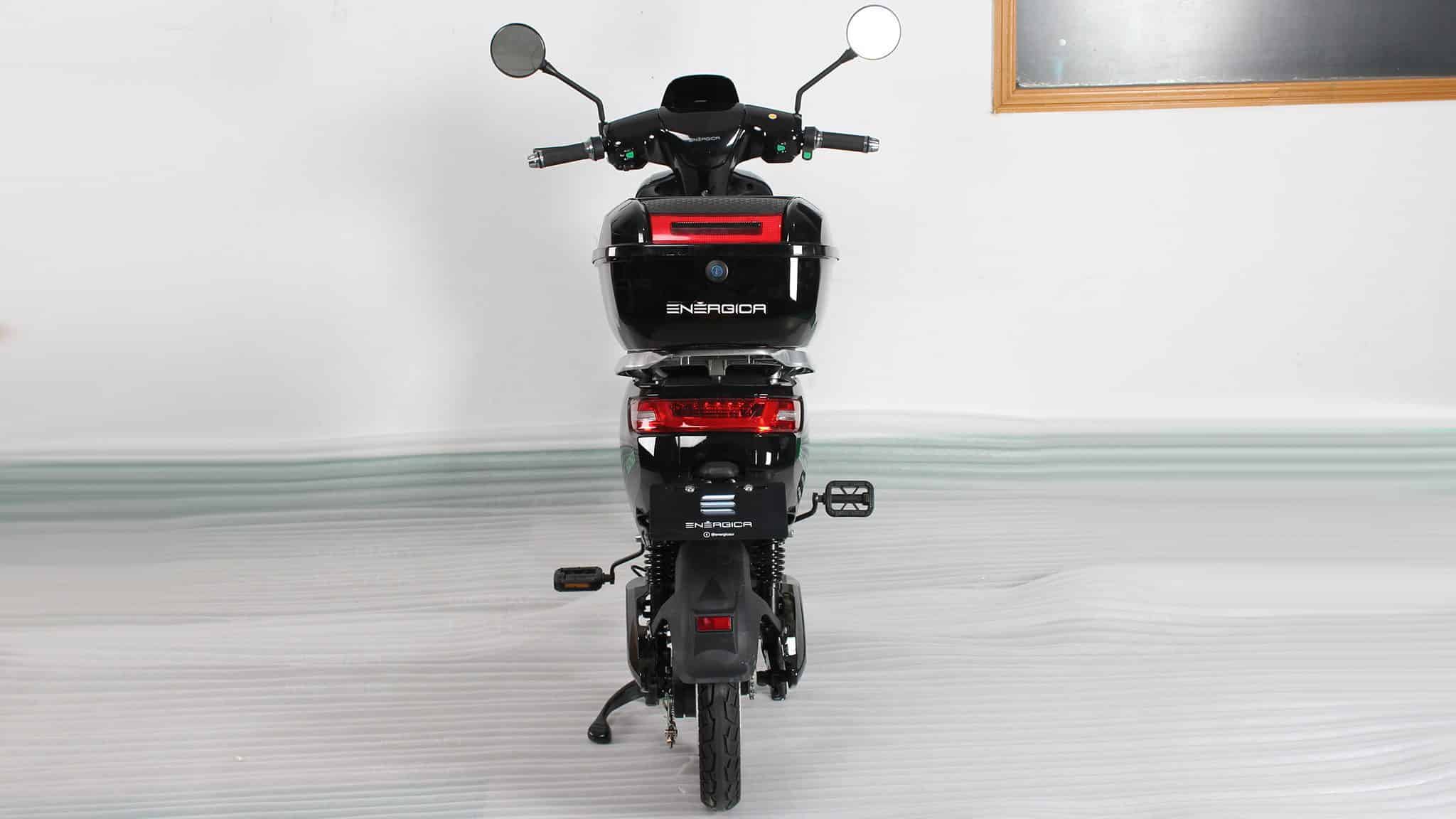

  • Photo-Album-_Electric Bicycle_UM-DB06_Rr._Black

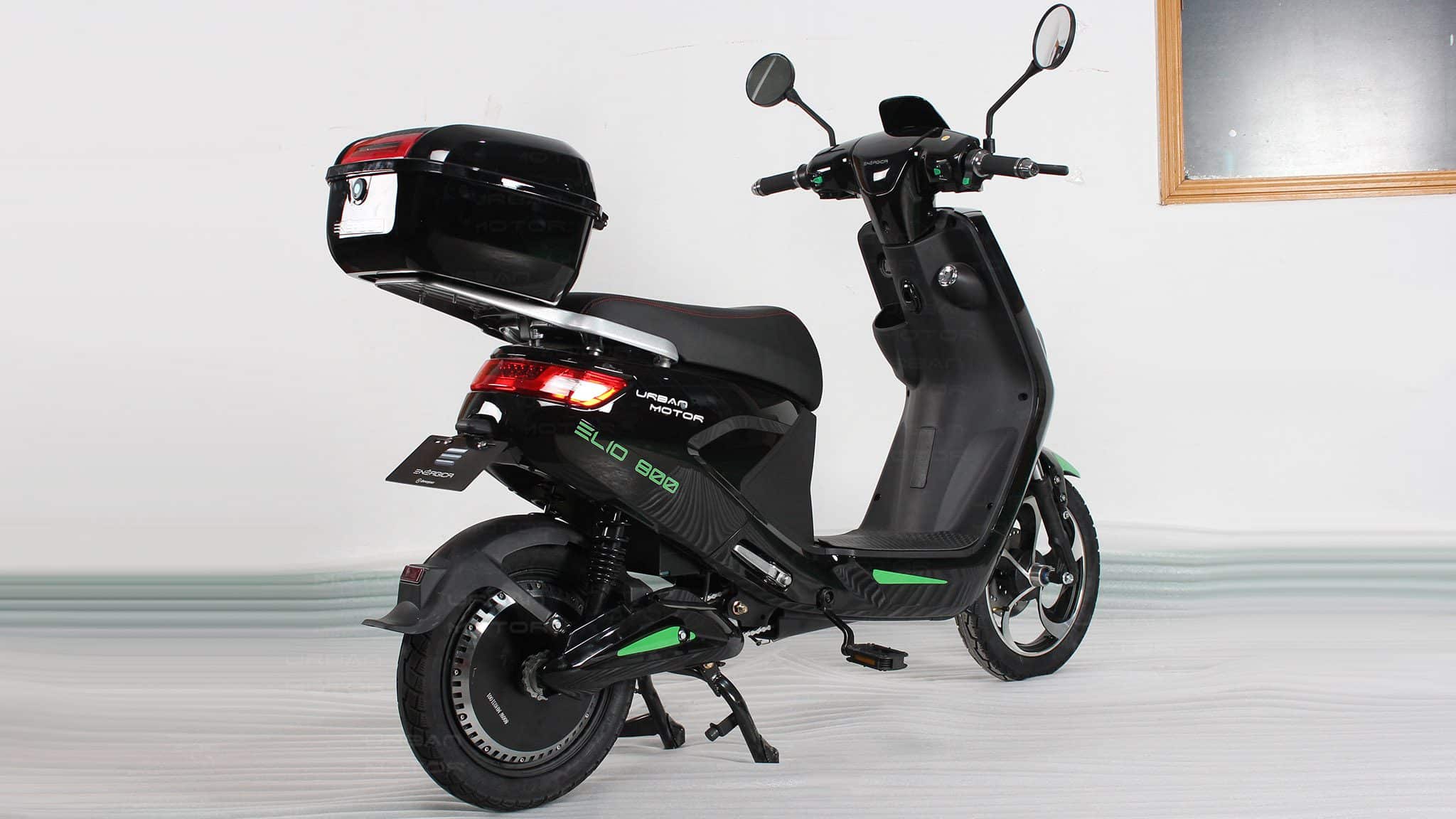

  • Photo-Album-_Electric Bicycle_UM-DB06_Rt._side2_Black

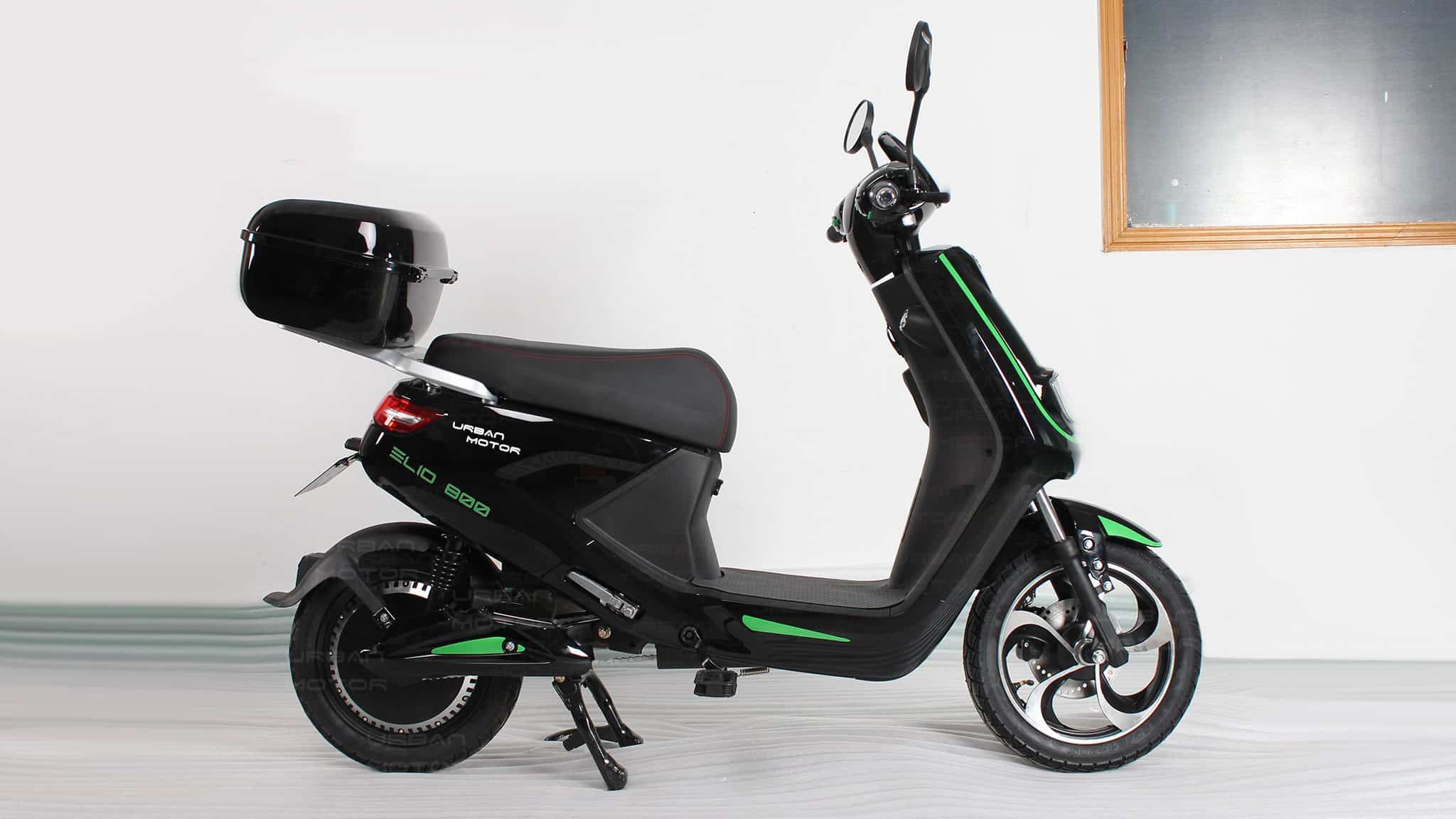

  • Photo-Album-_Electric Bicycle_UM-DB06_Rt._Black
  • Photo-Album-_Electric Bicycle_UM-DB06_Rt._side1_Black

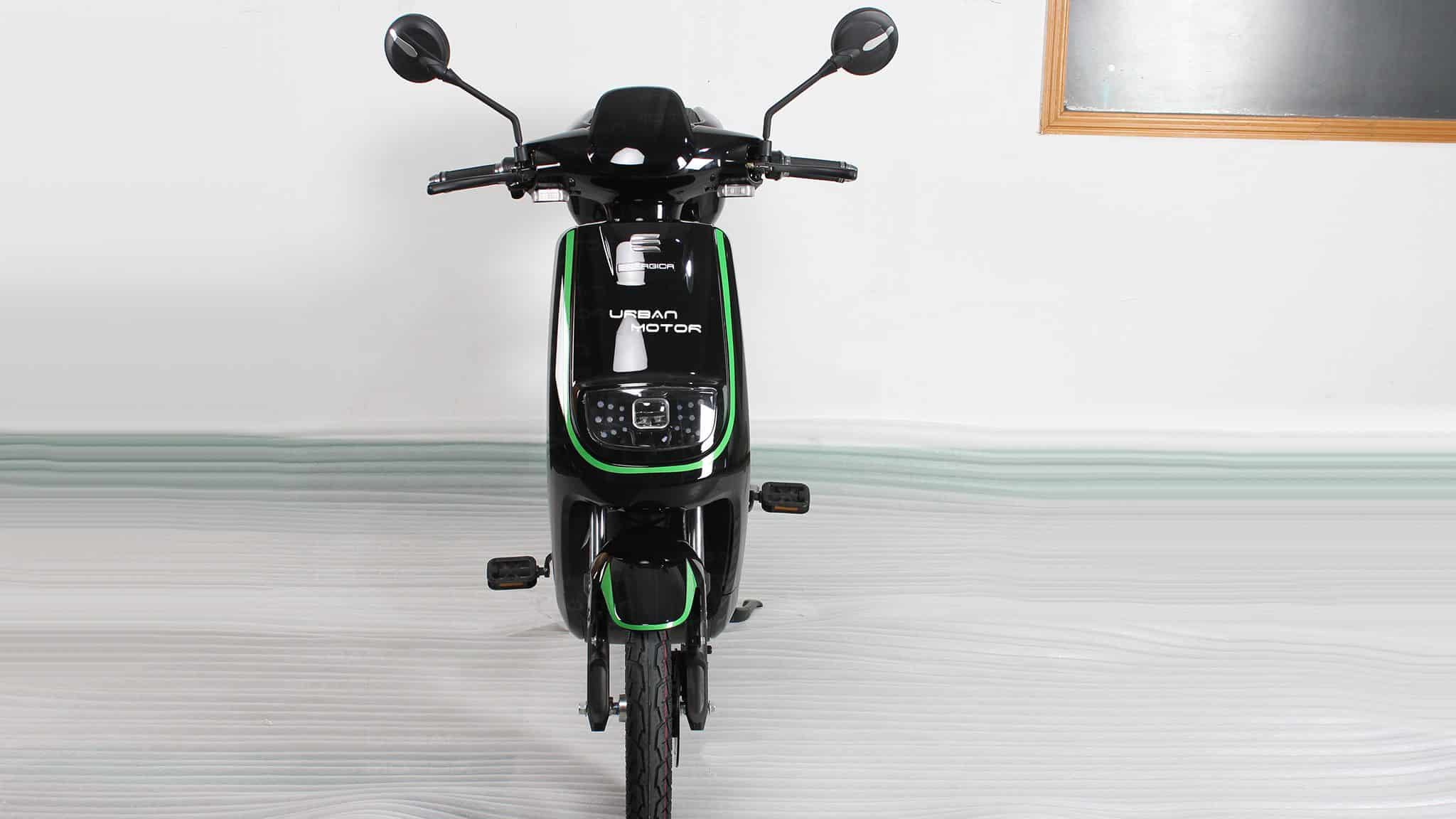

  • Photo-Album-_Electric Bicycle_UM-DB06_Fr._Black

$585 $565

Applicable people: students and young women; Age range: 14 to 45 years old; Usage scenarios: short to medium distance commuting / outings.

SKU: UM-DB06 Category:

Full LED Lamps
Upgraded full LED lamps system_day light head lamp_fr. & rr. signal lights_license plate light.
 LCD Dashboad
Upgraded LCD dashboard_switch assy.

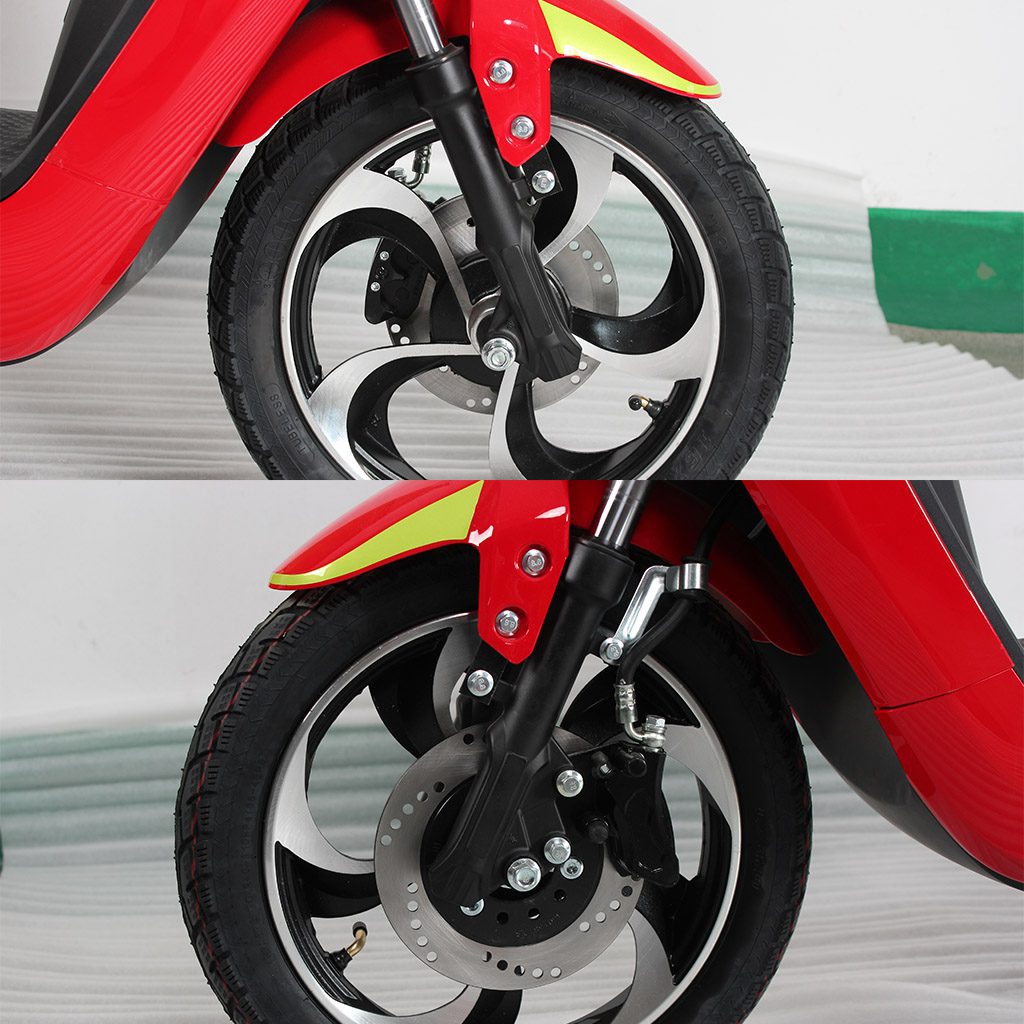

 Tubels. Tire
16X2.50_fr. & rr. tubeless tires.

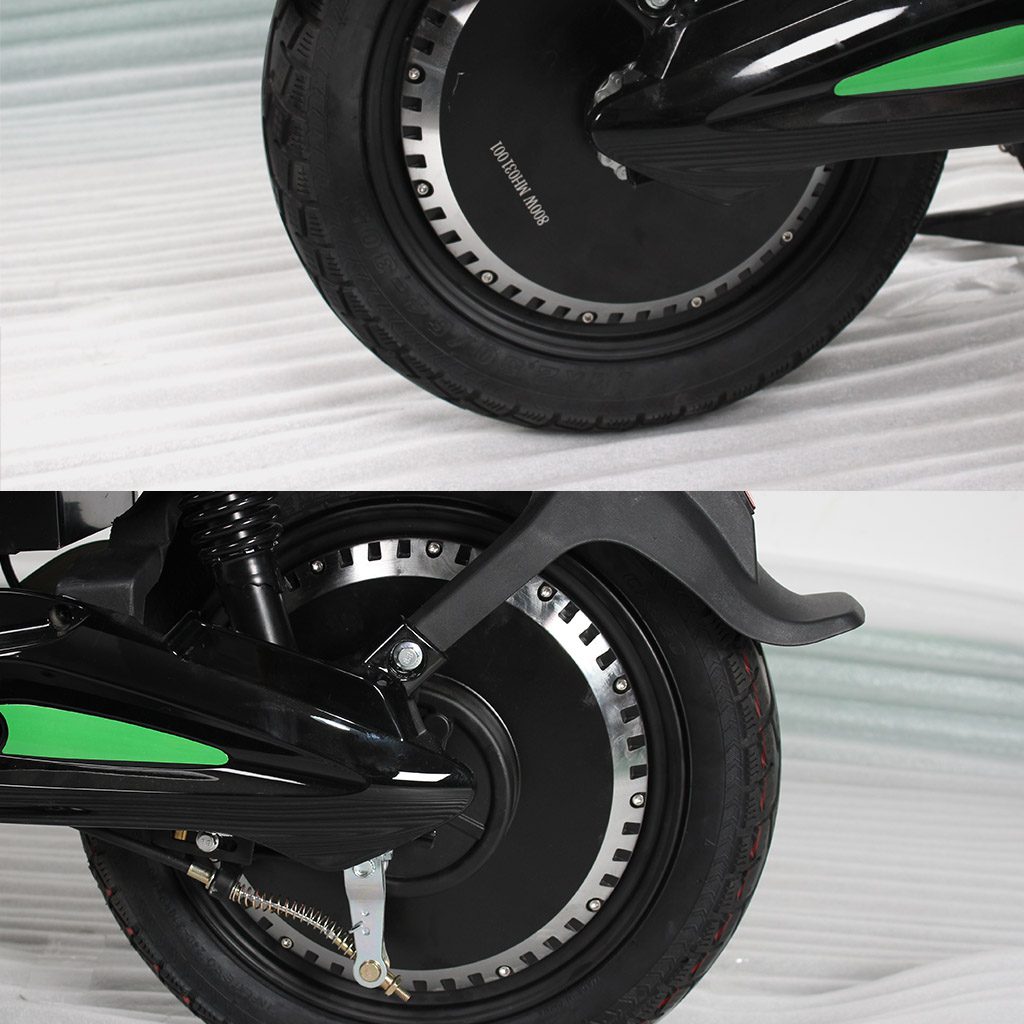

 MOTOR
Multiple BLDC Motor options_250W drum brake_500W disc brake_800W disc brake.
 Remote Control & Alarm
remote control & alarm

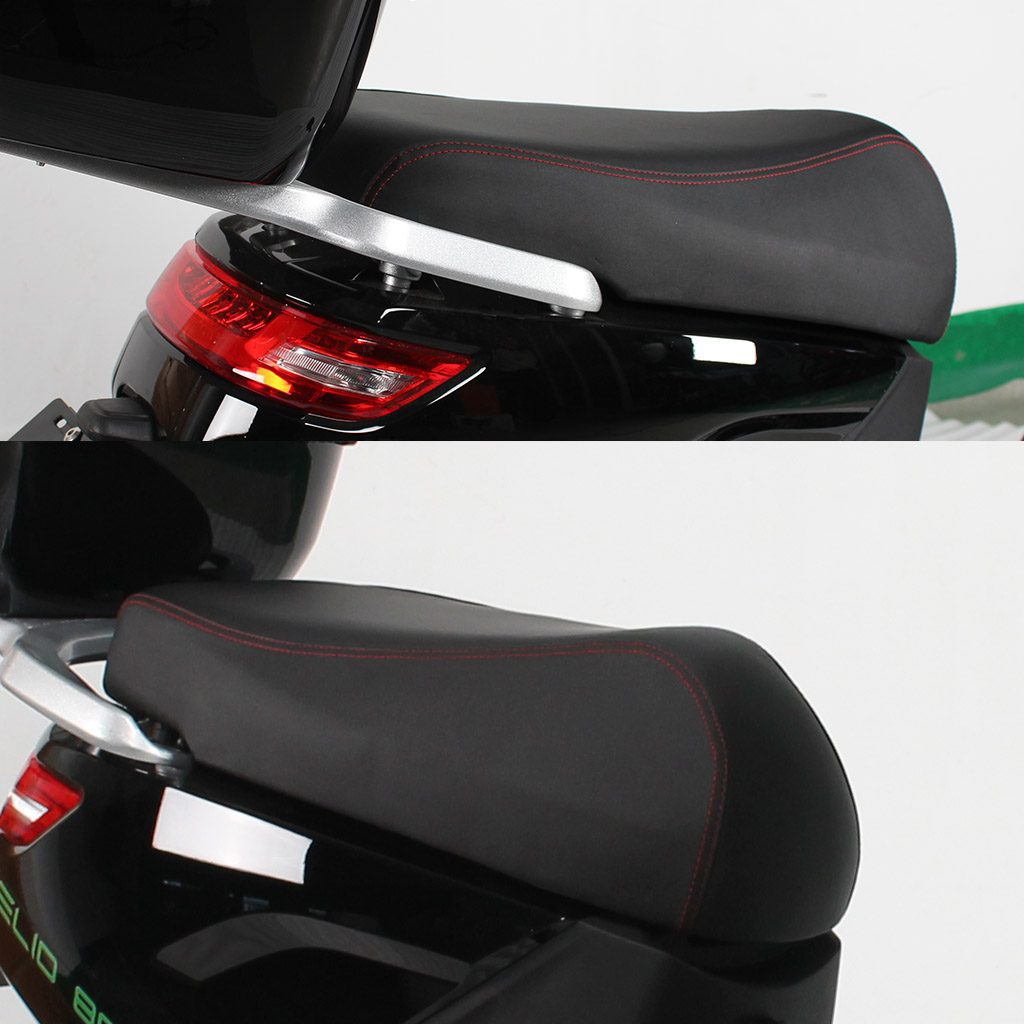

 Long & Wide Seat
Comfortable Long & Wide seat
 Wide driver footrest
wide driver footrest
 Alu. rear carrier & rear box
Aluminum rear carrier_rear box
 LED FR. Lamp
LED fr. lamp at night
 LED RR. Lamp
LED rr. lamp at night
 Photo-Gallery-Carousel_Electric Bicycle_UM-DB06_full LED fr. & rr. lamp & signal light during the day Photo-Gallery-Carousel_Electric Bicycle_UM-DB06_dashboard showing_switch assy Photo-Gallery-Carousel_Electric Bicycle_UM-DB06_16X2.50 tubeless tire_front disc brake Photo-Gallery-Carousel_Electric Bicycle_UM-DB06_high torque 800W BLDC motor_rear drum brake Photo-Gallery-Carousel_Electric Bicycle_UM-DB06_wide driver footrest Photo-Gallery-Carousel_Electric Bicycle_UM-DB06_remote control & alarm Photo-Gallery-Carousel_Electric Bicycle_UM-DB06_long seat for driver & passenger Photo-Gallery-Carousel_Electric Bicycle_UM-DB06_Aluminum rear carrier_rear box Photo-Gallery-Carousel_Electric Bicycle_UM-DB06_LED fr. lamp at night Photo-Gallery-Carousel_Electric Bicycle_UM-DB06_LED rr. lamp at night
Specification
48V/500W 20Ah L-I
48V/800W 20Ah L-A
48V/800W 20Ah L-I
60V/800W 20Ah L-A
UM-DB05_Specification table
UM-DB05_Specification table
UM-DB05_Specification table
UM-DB05_Specification table
Name
Leto
Model
UM-DB06
Dimension
1770*650*1080mm  (L*W*H)
Ignition mode
Mechanical Key, Remote Control
Motor
48V/500W, BLDC, hub, drum
48V/500W, BLDC, hub, drum
48V/800W, BLDC, hub, disc
60V/800W, BLDC, hub, disc
Battery
48V/20Ah, li-ion(NCM), portable
48V/20Ah, lead-acid
48V/20Ah, li-ion(NCM), portable
60V/20Ah, lead-acid
Dashboard
LED
Drive mode
Throttle, Pedal assist
Brake
fr. / rr. Disc/Drum
Tire
fr. & rr. 16*2.50 Tubeless
Stand
Side stand & Main stand
Performance




Charging time
5h
6-8h
5h
6-8h
Battery Life
600-800 Cycles
300-400 Cycles
600-800 Cycles
300-400 Cycles
Max. Speed
25km/h
40km/h
40km/h
40km/h
Range
65-70km
50-55km
50-55km
60-65km
Climbing
10° / 18%
12° / 21%
12° / 21%
12° / 21%
Max. Loading
125kg
150kg
Packing




N.W.
62kg
81kg
63kg
88kg
G.W. (full ctn.)
70kg
89kg
71kg
97kg
Packing Size
1680*460*860mm  (L*W*H)
Loading Qty.
105 units / 40HQ, SKD
Configuration




Option 1
⌾Rear view mirror with signal light
Option 2
⌾Bluetooth Stereo speakers
Option 3
⌾USB phone charger
Option 4
⌾Tail plate
Price
Notice

*The company reserves the right to make technical and aesthetic changes at any time.

*Ride carefully, always wearing a helmet and and proper attire. Always comply with the rules of the road and respect the environment. Read the operating and maintenance manual carefully.

*Always ask for original and approved spare parts in accordance with prevailing standards. See your Official Urban Motor Dealership and Authorised Retailers for a secure purchase and guaranteed service support. Original Urban Motor spare parts are a guarantee of quality and ensure that vehicle performance remains unaltered.
